Floating Staircase Design in Autocad with Metal Wire Railing
×
Posted By - Smita Varshnay
Posted By - Smita Varshnay
Description

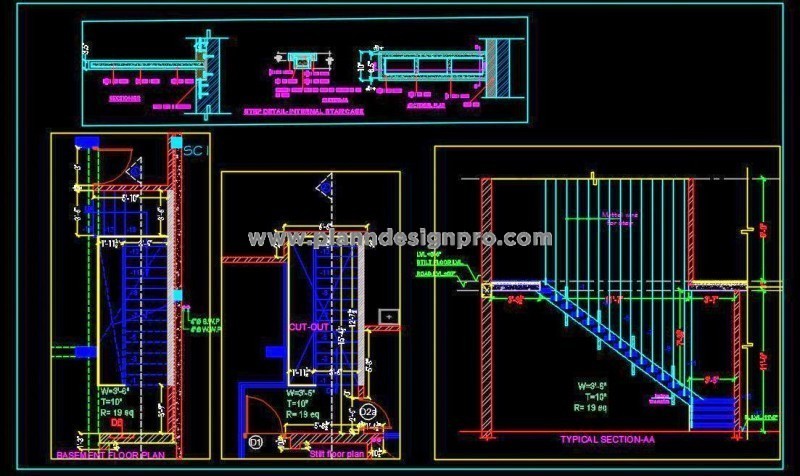

This Autocad drawing features a beautifully designed wooden floating staircase, ideal for modern architecture and interior design. Crafted from wooden ply board and supported by metal angle brackets and strips, this staircase is both stylish and functional. The design includes a metal wire railing for safety and aesthetics.
The drawing provides comprehensive details, including the staircase plan, sectional views, and fixing details, making it a valuable resource for architects and designers looking to incorporate a floating staircase into their projects.
The drawing provides comprehensive details, including the staircase plan, sectional views, and fixing details, making it a valuable resource for architects and designers looking to incorporate a floating staircase into their projects.
Show more
Downloads in last 24 hours
Product Details
| Category | Construction & Standard Details |
| Software | Autocad DWG |
| File ID | 450 |
| Type | Paid |
